Product introduction

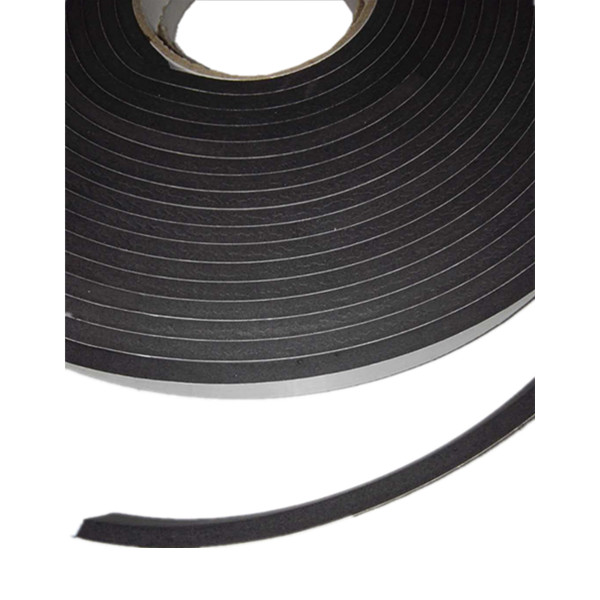

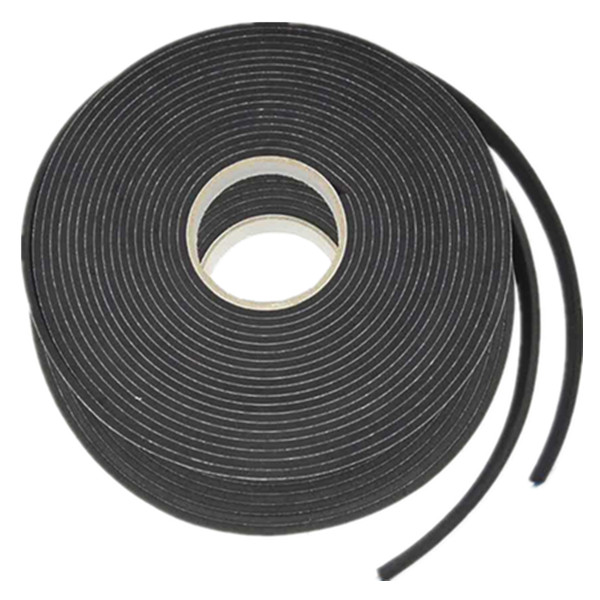

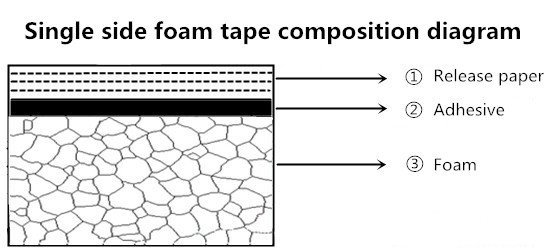

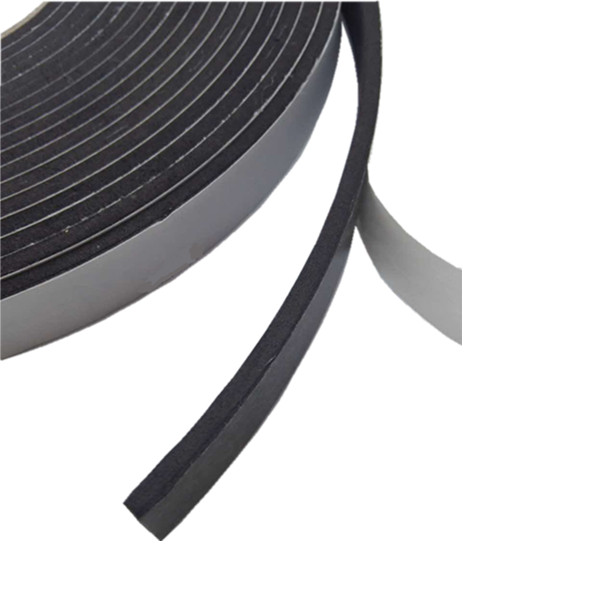

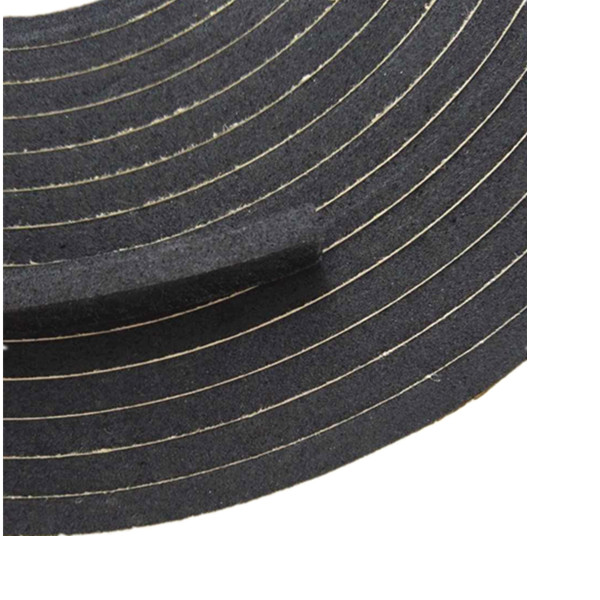

Closed cell EVA single-sided foam tape is easy to cut and joint for a good style in air handling and acoustic engineering, building and construction, automotive, electrical and electronic, furniture and glass, printing, packaging, advertisement and many other industries. It's closed cell foam with excellent holding power, peel strength and initial adhesion

Specification Sheet for：EV90
Material Properties	Unit	Test Method		Measured value
Density	Kg/m3	ASTM D1667		90±10
Hardness	Shore C	ASTM D2240		23-29
Tensile Strength	KPa	ASTM D638-03		1100
Elongation at break	%	ASTM D638-03		210
Compressive strength	KPa	ASTM D1667-05		49
Tear strength	N/cm	ASTM D1004-09		3.2
Compression set	%	ASTM D395-03		3.5
Operating temperature	℃	---		-40 to +80
Flammability	---	UL94-2013		UL94 HF-1
	---	FMVSS 302		Pass
